Dock levelers bridge the gap between your warehouse & transport vehicles and play a role in loading and unloading operations. Your distribution center or manufacturing facility needs these specialized equipment pieces to handle different heights and weights for smooth logistics. Most dock levelers can support 25K to 35K pounds, and some heavy-duty models handle up to 100K pounds.
The market offers dock levelers and plates in sizes that range from 6′ to 7′ wide and 6′ to 12′ long. This variety helps you pick the right fit that matches your facility’s needs. Warehouse managers should know about different types of dock levelers. Options like pit-installed models and edge-of-dock varieties can substantially boost your operational efficiency. Many models support impressive loads between 6 and 25 tons. This makes them perfect for almost any industrial use. This piece covers everything you should know to make smart choices about your loading dock setup.
What is a Dock Leveler and Why It Matters
A dock leveler works as a specialized platform that bridges your loading dock and transport vehicles. These permanent fixtures help match the height differences between the warehouse floor and truck beds, which ensures safe and quick transfer of goods. The dock leveler’s main component is a metal plate (lip) that extends from the dock to the trailer bed and creates a smooth transition surface.
Definition and simple function
Dock levelers, also known as dock lifts or leveler systems, play a vital role in material handling operations. They work by adjusting their height to line up with delivery vehicles. The adjustable platform operates manually, mechanically, or hydraulically based on the model type. The platform rises when activated and extends its lip to rest on the truck bed, which creates a stable path for forklifts and other equipment.
How it bridges the gap between dock and vehicle
A dock leveler’s main goal is to remove dangerous gaps between your facility and transport vehicles. The uneven surface without this significant bridge would pose major risks to both personnel and cargo. The leveler maintains a stable connection as weight changes cause the vehicle’s bed to move up or down. This stability helps prevent accidents and damage that could happen from sudden jolts or uneven surfaces.
Common use cases in warehouses
Dock levelers serve many purposes in industrial settings of all types:
- Distribution centers
- Manufacturing facilities
- Food and beverage operations
- E-commerce fulfillment centers
These devices prove most valuable in places where loading and unloading happen throughout the day. Industrial vehicles like forklifts can move safely between docks and trucks, which improves operational efficiency and reduces workplace injury risks.
Types of Dock Levelers Explained
The market today offers several dock leveler types, each built for specific operations. Picking the right equipment depends on understanding how these variations match your facility’s needs.

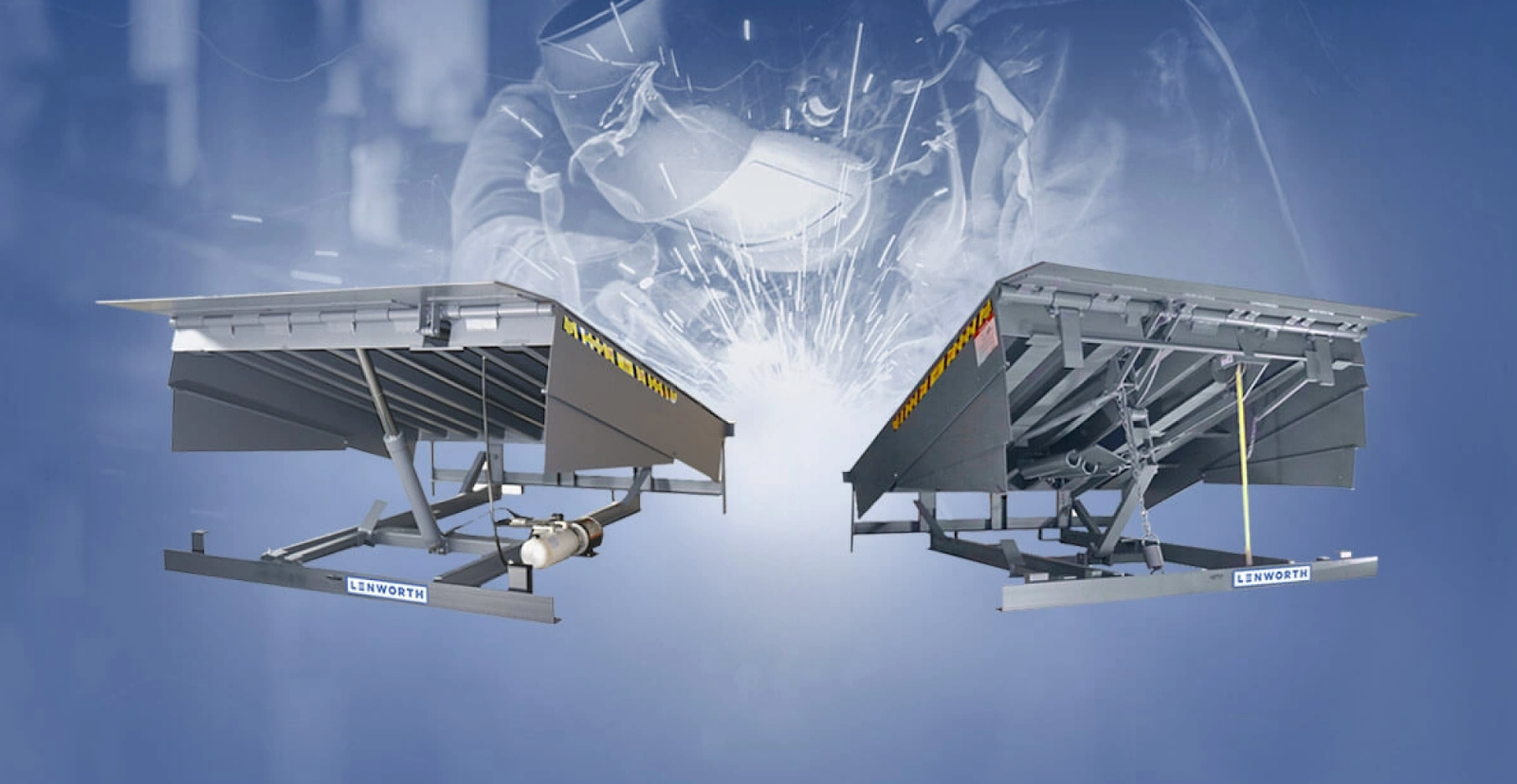

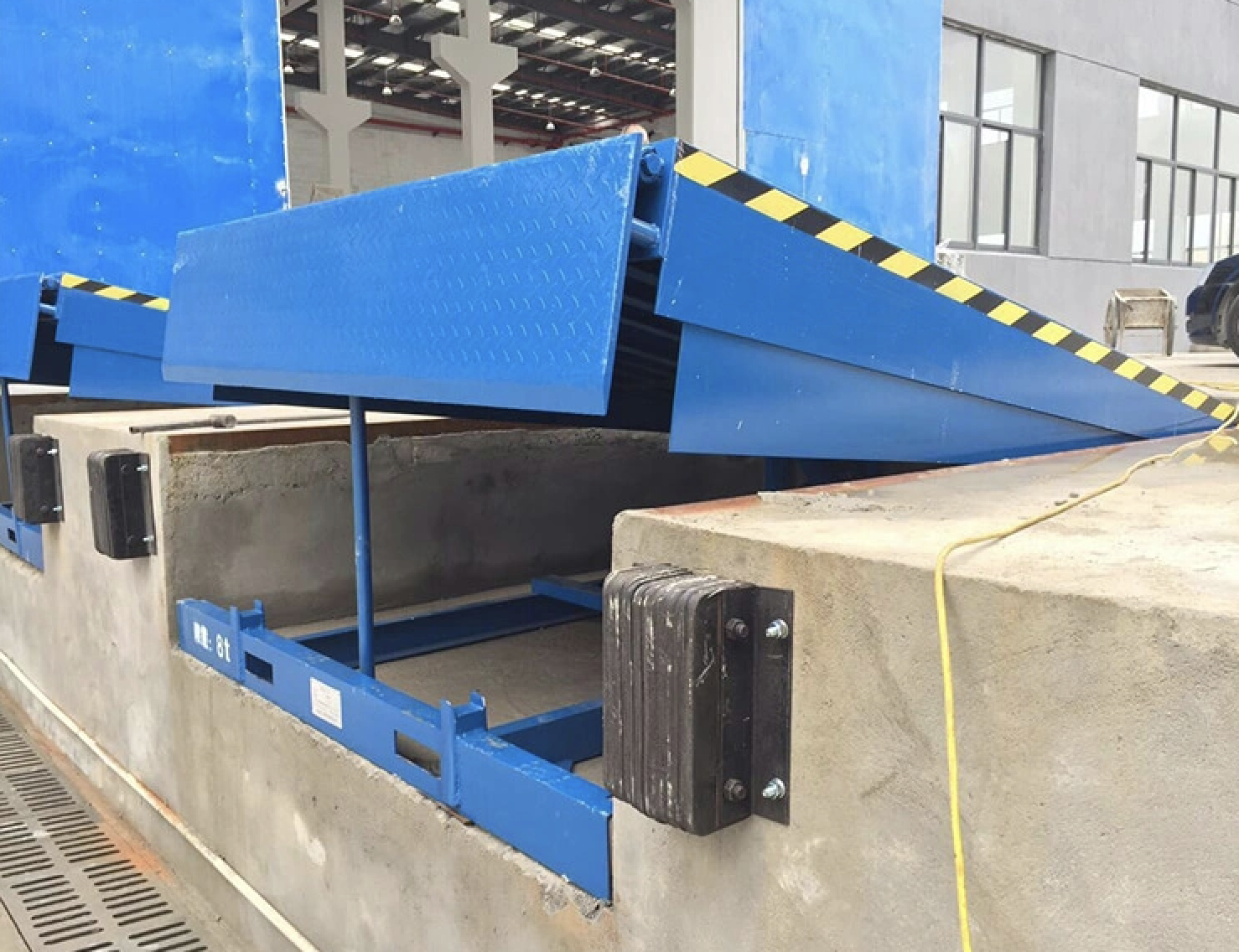

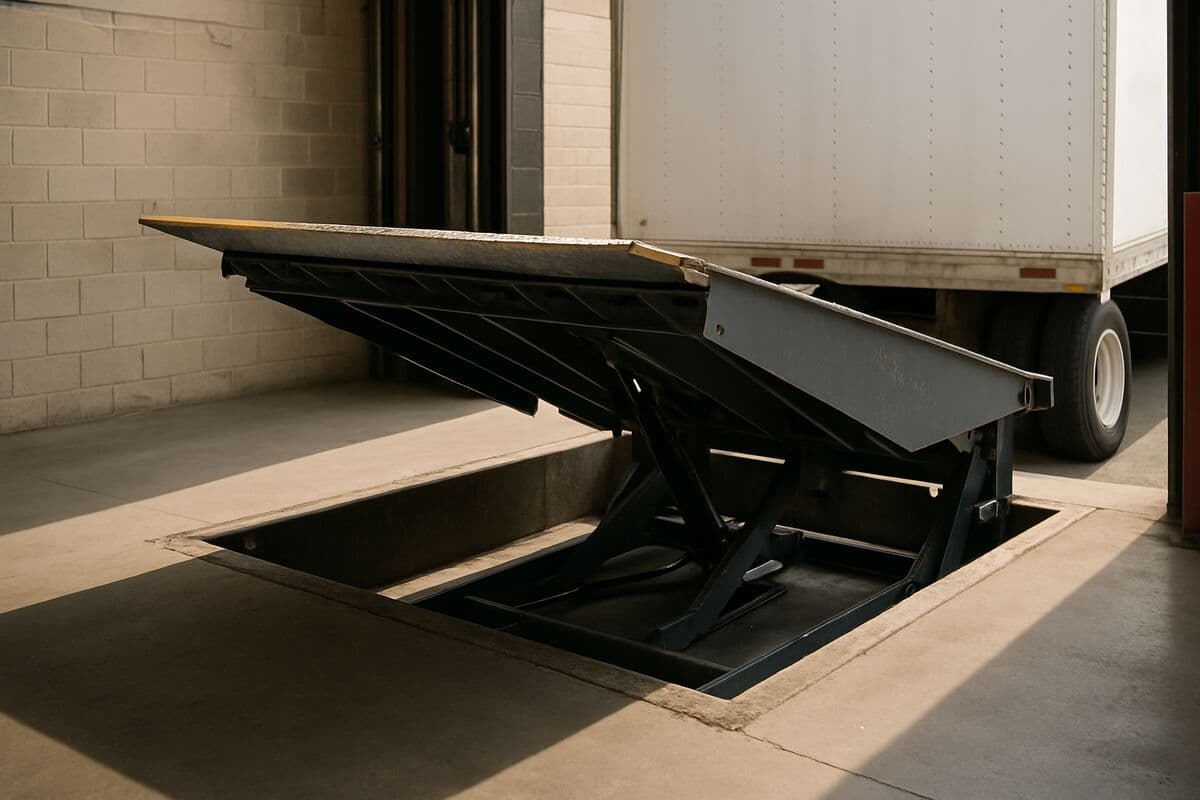

Pit Levelers: Mechanical, Hydraulic, and Air-Powered
You’ll find pit levelers installed in recessed concrete openings near dock doors, with three main types available. Mechanical pit levelers work through a spring system that lifts the deck without power. They cost less upfront but need more maintenance money over time. Hydraulic pit levelers use hydraulic cylinders to move the deck and lip, which gives them more flexibility and usually costs less to maintain. These systems run automatically with just a button press and handle heavy loads really well. Air-powered pit levelers lift and lower the deck using pneumatic bags or bellows. The price tag sits below hydraulic systems, but you’ll spend more time maintaining them since the air bags need regular cleaning.

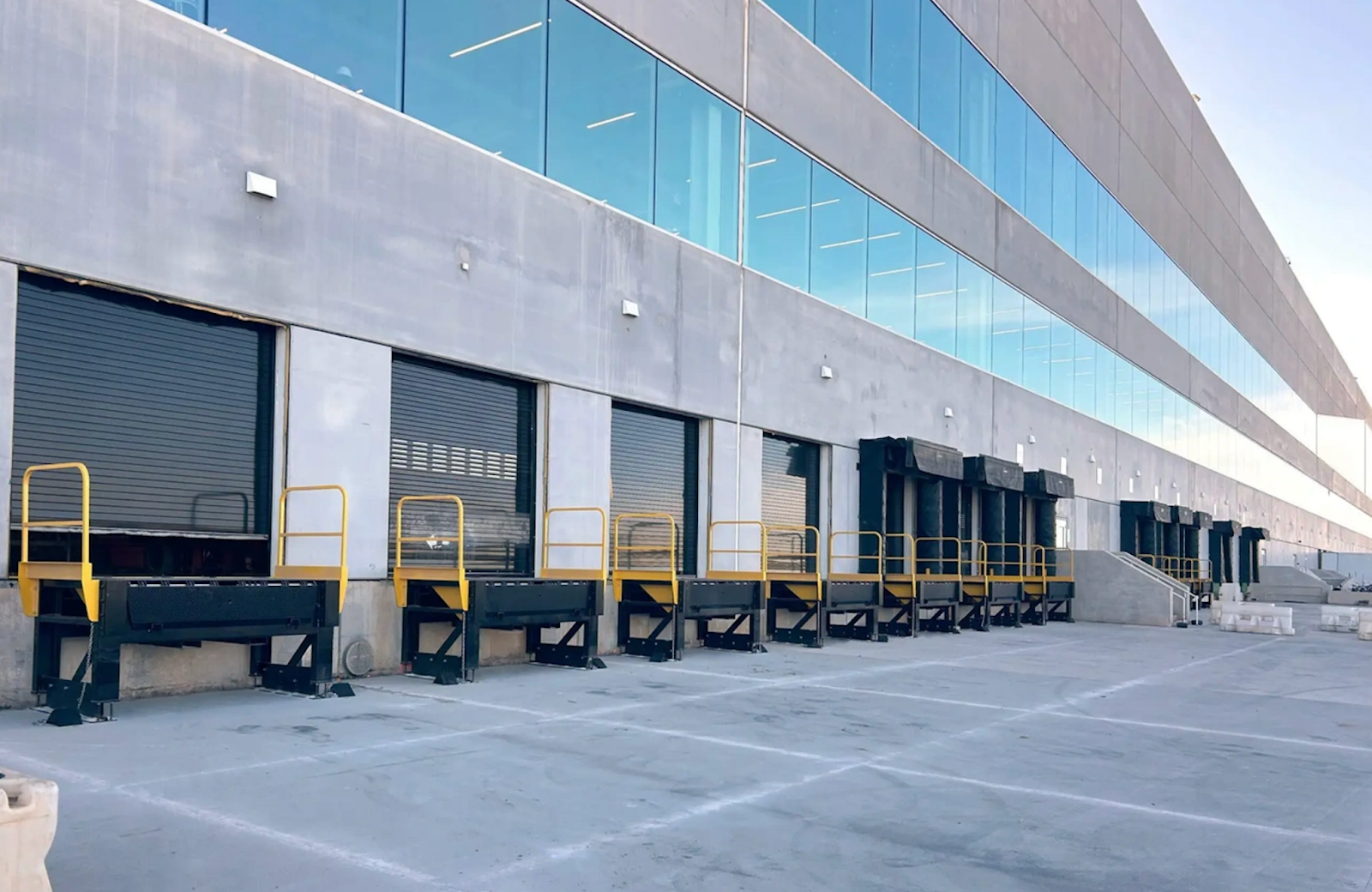

Edge-of-Dock Levelers (EOD)
EODs attach right to the dock face and work within ±3 inches, maxing out at ±5 inches above or below dock level. These space-savers eliminate the hassle of storing, finding, and moving portable plates, which reduces trip hazards and keeps products cleaner. You can get them in mechanical or hydraulic versions. They work best in places with tight spaces, trucks of similar heights, and lighter loads. Many facilities choose EODs as a budget-friendly option when pit-style levelers don’t fit the bill.

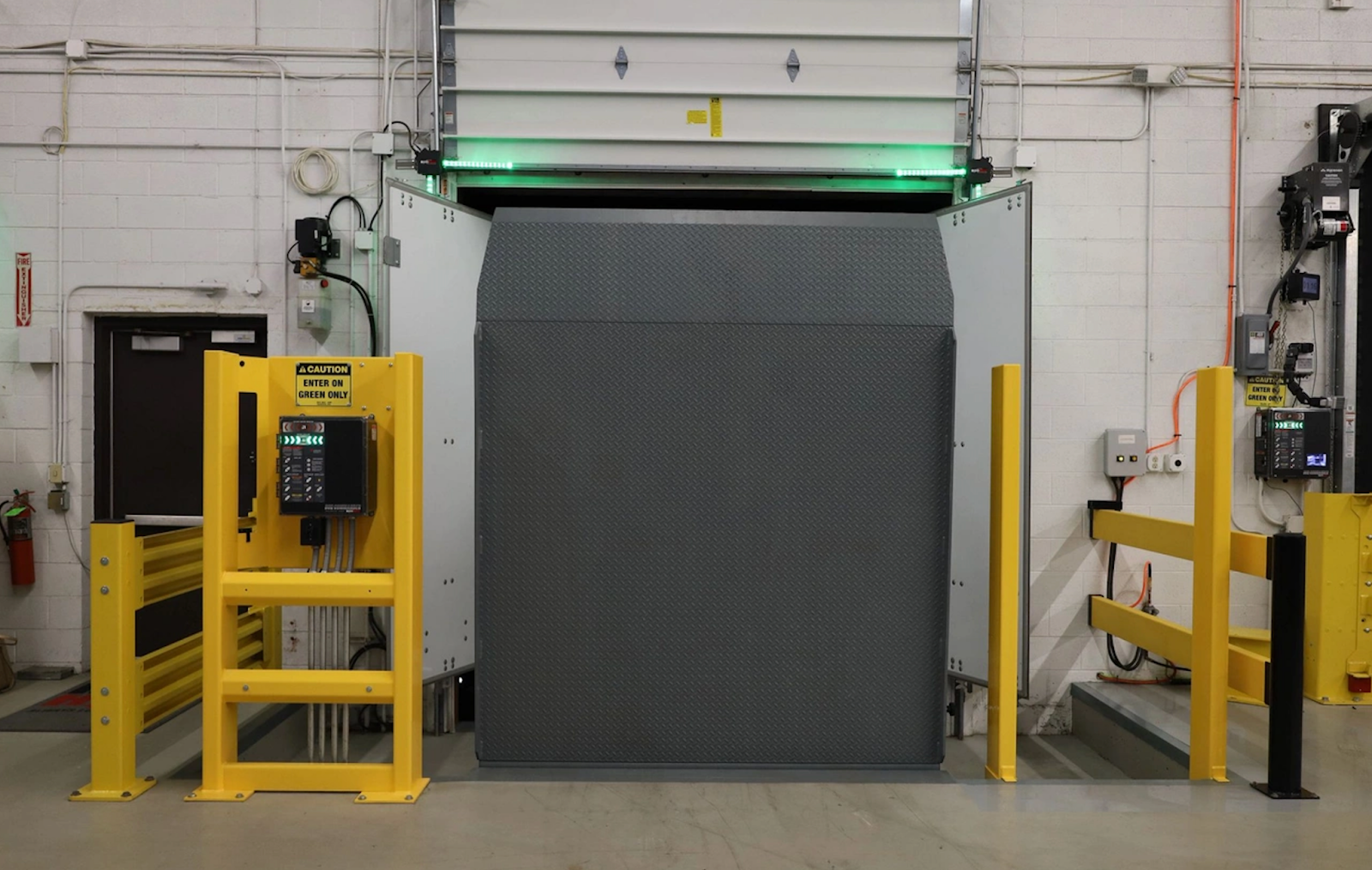

Vertical Dock Levelers
Vertical dock levelers store upright, letting dock doors close directly on concrete instead of over the leveler. This design boosts environmental control, which makes them perfect for food service or anywhere that needs strict temperature control and cleanliness. The leveler’s design creates a tight seal between trailers and buildings, helping maintain cold chain integrity and cut down energy costs.
Rail Dock Levelers
Rail dock levelers are built specifically for rail cars. They usually sit on sliding rails and move horizontally to line up with rail cars. These levelers run on hydraulics and come with features like extending lips for end loading. The design works with standard rail car bed heights from 41″ to 46″, while refrigerated rail cars range from 46″ to 52″.
Choosing the Right Dock Leveler for Your Facility
You just need to analyze your facility’s specific operational needs to select the right dock leveler. The right choice today will prevent getting pricey replacements and will give a smooth operation for years to come.
Load capacity and frequency of use
Load capacity is the most critical factor in leveler selection. To calculate accurately, add your forklift’s gross weight to the heaviest load weight, then multiply by 2.5 for light to normal usage. Heavy usage facilities should use a multiplier of 3 to 4 instead. Note that capacity ratings show dynamic loads (moving weight) rather than static loads.
Three-wheeled forklifts create substantially higher point loading and usually just need dock levelers with minimum capacity of 30,000 lbs whatever the actual load weight. Traffic volume matters too—docks that serve more than eight trucks daily just need higher capacity ratings.
Dock height and vehicle variation
Your dock’s height difference from incoming vehicles sets the grade percentage—a crucial factor that affects operations. Electric-powered material handling equipment works with 10% maximum grade, while gas or diesel equipment handles up to 15%. Big height differences create steep grades that can damage your dock leveler too soon.
Edge-of-dock levelers work well with minimal trailer height variation (within 3″ range). But facilities that receive different vehicle types just need pit-style levelers with extended ranges.
Environmental and safety considerations
Different industries have requirements that shape leveler selection. Food processing facilities often like vertical storing levelers that make cleaning easy and reduce pest concerns. Refrigerated spaces just need proper insulation—think over perimeter sealing options or vertical levelers that minimize air getting in.
Key safety features include lip locks, safety barriers, and industry regulation compliance. These parts help prevent accidents and keep both people and equipment safe.
Future-proofing your investment
Take a look beyond current operations when you evaluate dock levelers. Thinking ahead might cost more now but saves money down the road by preventing early replacement. Dock levelers typically last 10+ years when specified correctly, so choose capacity ratings that fit your business’s future growth.
Note that you can’t increase a dock leveler’s capacity after installation. So going with higher capacity gives you flexibility as your business grows.
Manual vs Powered Dock Levelers: Pros and Cons
Your choice between manual and powered dock levelers will affect your investment costs and operational expenses. Each type has clear advantages based on your facility’s needs.
When to choose mechanical dock levelers
Mechanical dock levelers are an economical solution for simple applications that maintain strength and durability. These spring-powered units work best in facilities with low dock traffic where loading isn’t a daily priority. The operator activates them with a pull chain that releases spring tension and walks the deck down to the trailer bed position. These levelers work without electrical power, which makes them perfect for places with unreliable electricity or where power installation costs too much.
Benefits of hydraulic dock levelers
Hydraulic dock levelers make operation effortless through push-button control. These systems lift and place the leveler and lip automatically with hydraulic cylinders and pumps. They are a better choice for worker safety since no one needs to bend, reach, or jump to position the bridge—which leads to fewer workplace injuries. Built-in velocity fuse safeguards prevent free-falling if hydraulic pressure drops. On top of that, these levelers can interlock with trailer restraints, so the dock only activates after the restraint locks safely with the trailer.
Air-powered systems: a middle ground
Air-powered dock levelers fill the gap between hydraulic and mechanical options. An industrial-grade blower inflates an airbag that lifts the platform. These units give you push-button control like hydraulic models but cost about the same as mechanical levelers. Air-powered systems need less maintenance because they have fewer moving parts than mechanical units. The air tower design keeps the blower and motor safe from environmental elements, so these units work well in wash-down applications.
Maintenance and cost comparison
Hydraulic levelers cost about 30% more upfront than mechanical ones but usually cost less over their lifetime. Research shows facilities pay six times more to maintain mechanical levelers over ten years. Mechanical levelers need more frequent part replacements and service calls because they stay under constant tension. Air-powered levelers sit in the middle of maintenance costs and offer simple routine upkeep with their low-pressure lifting system.
Thanks For Reading Our Dock Leveler Guide
Your facility’s specific requirements determine the right dock leveler choice. Getting a full picture of your operation’s needs should drive your decision. Load capacity, traffic volume, and vehicle variation all play key roles. Low-volume facilities can benefit from mechanical systems as affordable options. Busy operations justify spending more on hydraulic levelers that provide better ergonomics and safety features.
Safety must lead your dock leveler selection process. The right safety features can cut down workplace accidents by a lot. Lip locks, trailer restraints, and proper maintenance protect your staff and equipment. Your investment becomes future-proof when you pick slightly higher capacity ratings than you need now. This gives you room to grow as your business expands.
Different industries face environmental challenges. Food processing facilities work better with vertical storing levelers that make cleaning easier. Temperature-controlled spaces need proper sealing to stay energy efficient. Your industry’s needs deserve extra attention when you pick dock leveler options.
Dock Leveler FAQs
What is the primary function of a dock leveler?
A dock leveler is a specialized platform that creates a bridge between a warehouse loading dock and transport vehicles, accommodating height differences to ensure safe and efficient transfer of goods.
How do I choose the right dock leveler capacity for my facility?
To determine the proper capacity, add the gross weight of your forklift to the weight of the heaviest load, then multiply by 2.5 for light to normal usage or 3-4 for heavy usage. Consider using a minimum 30,000 lb capacity for three-wheeled forklifts.
What are the main types of dock levelers available?
The main types include pit levelers (mechanical, hydraulic, and air-powered), edge-of-dock levelers, vertical dock levelers, and rail dock levelers. Each type is designed for specific operational needs and facility requirements.
How do hydraulic dock levelers compare to mechanical ones?
Hydraulic dock levelers offer push-button operation, superior ergonomics, and built-in safety features. While they have a higher initial cost, they typically result in lower lifetime ownership costs due to reduced maintenance expenses compared to mechanical levelers.
What factors should I consider when selecting a dock leveler?
Key factors include load capacity, frequency of use, dock height and vehicle variation, environmental considerations (like temperature control), safety features, and potential for future business growth. It’s important to choose a leveler that can accommodate your current needs and anticipated future requirements.
